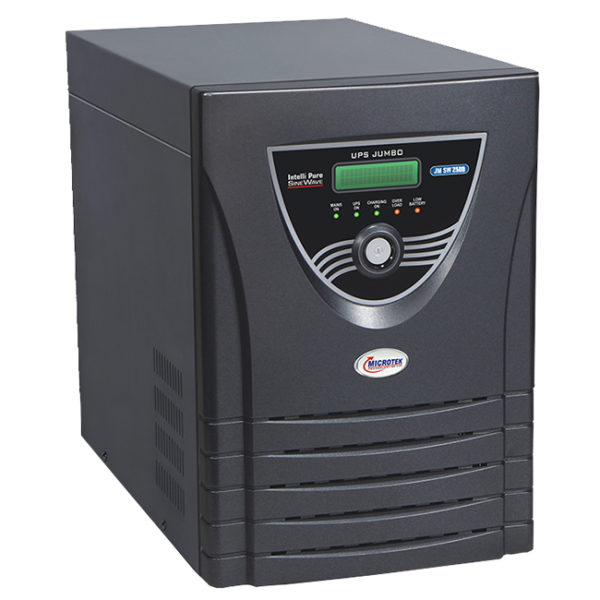

Microtek UPS JM SW 2500/24V

Microtek UPS JM SW is Jumbo Sinewave High Capacity Series Models with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance.

  • Description

    Product Description

    It is Static UPS with LCD Display. Pure Sinewave Output. Micro Processor Based PWM Technology using Hi-Grade Mosfets. Advanced Battery Management (ABM) for Longer Battery Life & Quick Changing.

    Rated Capacity 2.2 KVA
    Output Power 1760 Watts
    Battery 2 Battery System (24 VDC)
    Waveform Pure Sinewave
    Warranty 2 Years

    Key features

    • Micro Processor based PWM Technology using Hi-Grade Mosfets.Pure Sinewave UPS.
    • Static UPS with LCD Display.Pure Sinewave Output.
    • Advanced Battery Management (ABM) for Longer Battery Life & Quick Charging.
    • Smart Overload Sense, Short Circuit and Over Temperature Protection.
    • Safely suited to run Computers & Other IT Applications.
    • Generator Compatible.
    INPUT
    Input Voltage (Standard range) 110 V ~ 280 V
    Input Voltage (Narrow range) 180V ~ 265 V
    OUTPUT
    Output Voltage (Mains Mode) Same as Input
    Output Voltage (UPS Mode) 180~230 V (± 10V)
    Output Waveform (Mains Mode) Same as Input
    Output Waveform (UPS Mode) Pure Sinewave
    CHANGEOVER
    Switchover from Mains to UPS and UPS to Mains Automatic
    UPS Transfer Time ≤ 15 msec.
    TECHNOLOGY
    Design Micro Controller Based Design
    Battery Charging Current 17 Amps ± 3 Amps
    UPS Overload / UPS Short-circuit ≥110% / ≥ 300%
    Browns on Mains Voltage 100V ± 10V
    Efficiency (Battery Mode) > 80%
    Auto Reset Feature Yes
    Input DC Range 21 V ~ 28.4 V
