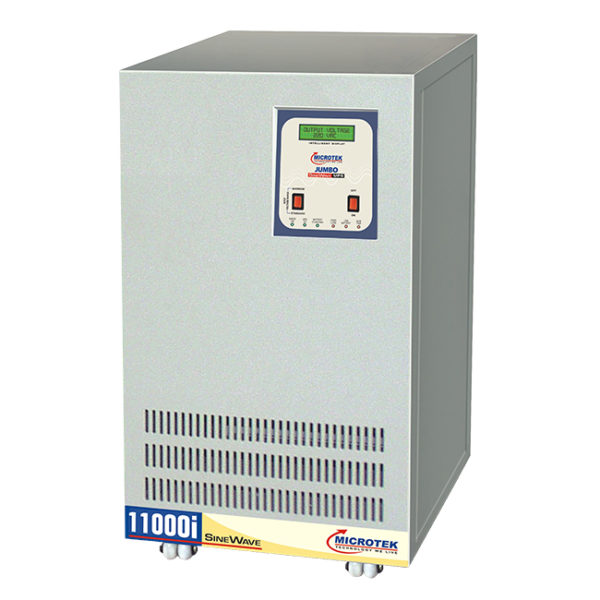

Microtek UPS JM SW 11000i/180V
Microtek UPS JM SW is Jumbo Sinewave High Capacity Series Models with Intelli Pure Sinewave Technology which ensures Noiseless, Safe and Efficient Performance.
-
Description
Product Description
It is Micro Processor based PWM technology using Hi-Grade IGBT’s with Peak Current Handling Capacity and Static UPS with LCD Display. It has In-built Time Delay Relay and Advanced Battery Management for Longer Battery Life and Quick Charging.
Rated Capacity 10 KVA Output Power 8000 Watts Battery 15 Battery System (180 VDC) Waveform Pure Sinewave Warranty 2 Years Key features
- Advanced Battery Management (ABM) for Longer Battery Life and Quick Charging
- Micro Processor based PWM Technology using Hi-Grade IGBT’s
- LED & LCD Display Indications.
- Best Suited for most High Capacity Sophisticated Applications.
- Generator Compatible.
- In-built Time Delay Relay (TDR).
Display
- MAINS ON
- UPS ON
- BATTERY CHARGING
- OVERLOAD
- LOW BATTERY
- MCB TRIP
* Load may vary depending on the condition of the Appliances or Manufacturers Specs.
* Specifications are subject to change without notice. The Company does not take liability for consequential damages.INPUT Standard Input Voltage Range 100 V ~ 280 V Narrow Input Voltage Range 180 V ~ 265 V OUTPUT Output Voltage (Mains Mode) Same as Input Output Voltage (UPS Mode) 220V ± 10% Output Waveform (Mains Mode) Same as Input Output Waveform (UPS Mode) Pure Sinewave CHANGEOVER Switchover from Mains to UPS and UPS to Mains Automatic UPS Transfer Time ≤ 15 msec. TECHNOLOGY UPS Overload / UPS Short-Circuit 105%~125%(4 Times Auto Reset) / 300% Efficiency (Battery Mode) > 80% Total Harmonic Distortion(Resistive Load) Less than 3% Auto Reset Feature Yes Input DC Range 157 ~ 213 V ± 1 Volt Maximum Charging Current 16 Amps(Settable ± 3 Amps) Auto Reset Feature Yes Separate Output with TDR 1 minute TDR Operating Temperature 0 to 45° C -
