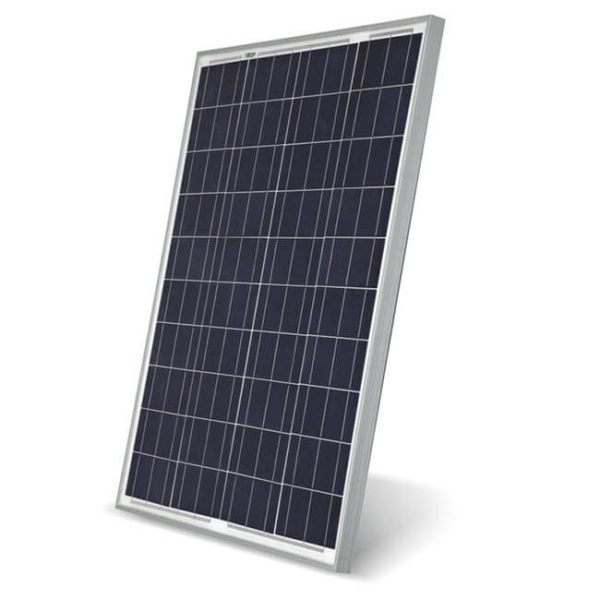

Microtek PV Module 100W

Microtek PV Module 100W

SKU:PV Module 100WCategory:

Categories: ,
  • Description

    Product Description

    Product Description

    • Positive Power Tolerance Modules.
    • Highly Classified A-Grade Solar Cells for Lesser Degradation and High Energy.
    • Micro Crack Free Panels-100% EL Tested Before and After Lamination.
    • High Conversion Efficiency based on Leading Innovative Photo Voltaic Technologies.
    • PID Free Modules with Long Term Reliability.
    • Anti-Reflective Coating Glass Available.
    • Advance IP67/IP68 Junction Box for long-term weather endurance.
    • RFID Tag Available.
    • Sustain Heavy Wind and Snow Loads (2400Pa and 5400Pa).
    • Excellent Performance in Low Light.
    • Salt Mist, Ammonia, Blowing Sand and Hail Resistant.
    • Ideal for Off-Grid as well as On-Grid Applications.
    • IP67 rated MC4 Compatible Connectors.
    • EVA Encapsulation and Anti Reflection Coating for better Module Protection.
    • Undergoes Rigorous Quality Control and more than 20 in-house tests, (DH: Damp Heat Test. TC: Thermal Cycling Test. HF: Humidity Freeze Test.).
    • Heavy duty Anodized Aluminum Frames with pre-drilled holes for Quick Installation.
    • Manufactured with Premium Quality Input Materials.
    GENERAL INFO
    Length x Width x Thickness (LxWxT) – mm 1010x665x35
    Mounting Holes Pitch (Y) – mm 500
    Mounting Holes Pitch (X) – mm 630
    Solar Cells per Module (Units) / Arrangement 36 / (9 x 4)
    Solar Cell Type Multi Crystalline Silicon
    Front Cover (Material / Thickness) Tempered & Low Iron Glass / 3.2mm
    Encapsulate Ethylene Vinyl Acetate
    Frame Material Anodized Aluminum Alloy
    Junction Box IP67/IP68 Enclosure with Bypass Diodes

    NOTE: Because of a policy of continuous product improvement, the Specifications are subject to change without prior notice.

    TECHNICAL INFO
    Nominal Maximum Power (Pm) 100Watts/12V
    Open Circuit Voltage (Voc) 21.90V
    Short Circuit Current (Isc) 6.12A
    Voltage at Maximum Power (Vmp) 17.96V
    Current at Maximum Power (Imp) 5.57A
    Maximum System Voltage 1000V
