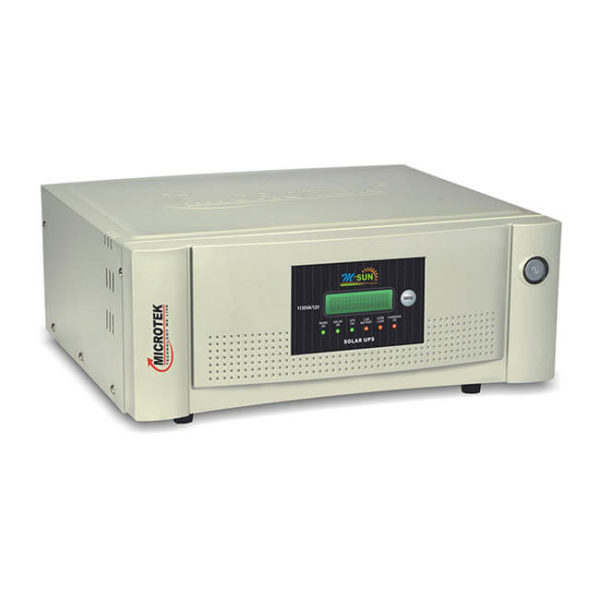

Microtek M-SUN SOLAR UPS 1135VA/12V

Microtek M-SUN SOLAR UPS is designed using latest state-of-the-art Technology for Better Performance and High Reliability.
It is Integrated with in-built 35Amp PWM Based Smart Solar Management Unit.
The Solar Sinewave Technology used,enhances the life of the battery and minimum effort has to be put for maintenance.

Category:
  • Description

    Product Description

    Model  M-SUN SOLAR UPS 1135VA/ 12V
    Capacity (Rated Power) 1135VA / 12 V
    Capacity (Maximum PV Power support) 600 Wp

    Key features

    • Micro-Controller DSPIC Based Intelligent Control Design.
    • Dual Charging,Mains Mode and Solar Mode.(Solar Panel upto 600W-12V model).
    • Pure Sine Wave Regulated Output.
    • Smart PWM Controlled multistage ATM (Automatic Trickle Mode) Charging.
    • LCD and Graphical Display Indications (Status & Fault).
    • Smart and Faster Overload Sense and Short Circuit Protection.
    • Auto Reset Feature.
    • Mains Input Voltage Range Selection.
    • PV Mode ON/OFF Selection Switch.
    • Charging Voltage Selection Switch.
    • Grid Charging Enable /Disable Selection.
    • Pure Sine wave Regulated Output.
    INPUT
    Input Voltage (Standard Range) 100 V ~ 300 V
    Input Voltage (Narrow Range) 180V ~ 260 V
    Nominal Input Battery Voltage 12V
    OUTPUT
    Output Frequency 50 Hz ± 0.5 Hz
    Output Waveform Pure Sine Wave
    TECHNOLOGY
    Solar Charger Type PWM
    Max. Solar Panel Current 35 Amps
    Mains Re-Connect Voltage 11.6 V ±0.3 V DC
    Mains Dis-Connect Voltage 14.4 V ± 0.3 V DC
    Solar UPS Overload 110%
    Solar UPS Short Circuit 300%
    Solar UPS Transfer Time ≤ 12 msec.
    Grid Chg. Enable Mode Luxury Mode
    Grid Chg. Disable Mode Economy Mode
