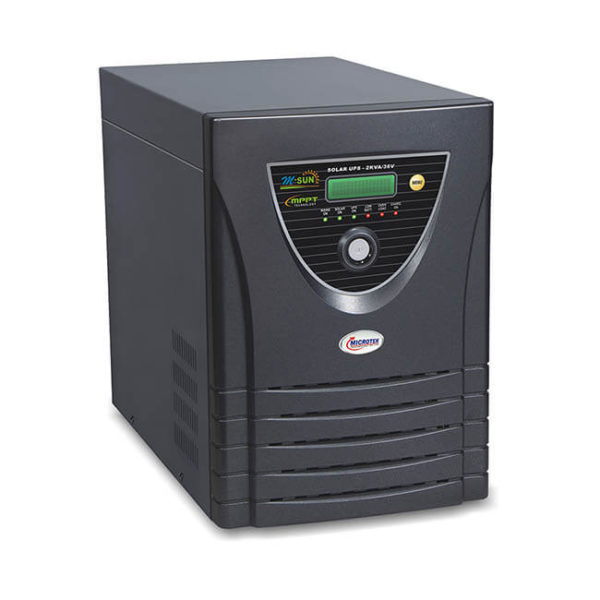

Microtek M-SUN SOLAR UNI-DIRECTIONAL HYBRID UPS 2KVA/36V

Microtek M-SUN SOLAR UNI-DIRECTIONAL HYBRID UPS 2KVA/36V

Microtek M-SUN SOLAR UNI-DIRECTIONAL HYBRID UPS is designed to utilize maximum use of Solar Energy.
If there is excess of Solar Energy Generation from PV then it charges the Battery and simultaneously it supplies the Power to the Load.

Category: Solar Uni-directional Hybrid UPS
Categories: ,
  • Description

    Product Description

    Model  M-SUN SOLAR UNI-DIRECTIONAL HYBRID UPS 2 KVA / 36V
    Capacity (Rated Power) 2 KVA / 36 V
    Capacity (Maximum PV Power support) 2KWp

    Key features

    • MPPT based State-of-the-art Latest Technology for Optimum Performance.
    • Pure Sine wave Output to run all Sophisticated Appliances.
    • Priority Selection Option for Solar / Battery / Grid
    • Option to Enable and Disable Grid Charging
    • Peak Output Power handling capacity.
    • Intelli Overload sense with Short Circuit Protection.
    • Battery Deep Discharge Protection.
    INPUT
    Input Voltage (Standard Range) 100 V ~ 300 V
    Input Voltage (Narrow Range) 180V ~ 260 V
    Nominal Input Battery Voltage 36 V
    OUTPUT
    Output Frequency 50 Hz ± 0.5 Hz
    Output Waveform Pure Sine Wave
    TECHNOLOGY
    Solar Charger Type MPPT
    Solar Panel VOC (Max) 45V ~ 130 V DC
    Max. Solar Panel Current 40 Amps
    Mains Re-Connect Voltage 35.4 V ±1 V DC
    Mains Dis-Connect Voltage 43 V ± 1V DC
    Protections Low Battery, Low Battery Shutdown, Input High Voltage, Input Short Circuit, Output Overload, Phase Shorting to Output, Short Circuit with Solar, Battery
    Grid Chg. Enable Mode Luxury Mode
    Grid Chg. Disable Mode Economy Mode
