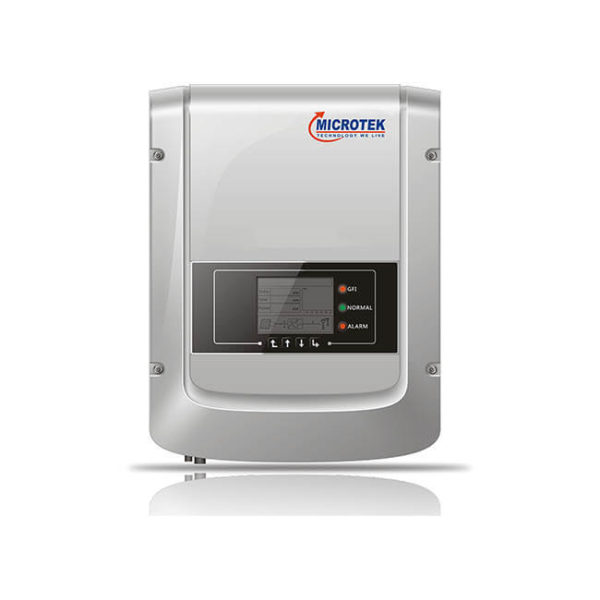

Microtek M-SUN SOLAR GRID-TIED SYSTEM GT 1KW
Microtek M-SUN SOLAR GRID-TIED SYSTEM is a system with Grid-Tie functionality.
MPPT Based Technology Grid Tie Wall mounted Solar System that converts Solar Energy into Electricity.
Excess Generation of Electricity from Solar Panel will be exported to Utility Grid if there is active Net Metering Policy in State.
-
Description
Product Description
Model MICROTEK GT1KW Key features
- Max 97% Efficiency, Real Time Precise MPPT algorithm for BEST Performance.
- Plug & Play Easy Installation & Maintenance, IP65 for Free Site Selection.
- Big Size LCD Display, Interface Selection, RS485 for System Monitoring.
- Intelligent Grid Management, Reactive Power Capability & Self Power Reducer when Over Frequency. Remote Active/Reactive Power Limit Control.
- SD Card inside for Data Storage upto 25 Years.
INPUT (DC) Max.Input Power/Number of MPPT 1100W/1MPPT Max.Input Voltage/Start-up I/P Voltage/Rated I/P Voltage 450V/100V/360V MPPT Voltage Range 80V~450V Full Load DC Voltage Range/Max.Input Current per MPPT 110V~450V/10A OUTPUT(AC) Rated Power/Max.AC Power/Max.AC Output Current 1000VA/1000VA/4.5A Nominal Grid Voltage/Grid Voltage Range 230V/180V to 270V(Adjustable,must meet Local Grid Requirements) Nominal Frequency/Grid Frequency Range Nominal:50Hz/60Hz, Grid:47~53Hz/57~63Hz(Adjustable,must meet Local Grid Requirements) THDi/Power Factor/Grid Connection <3%/1(Adjustable±0.8)/Single Phase Power Limit Export Zero Export or Adjustable Power Limit Export EFFICIENCY Max.Efficiency/Weighted Efficiency (EU) 97%/95.2% MPPT Adaptation Efficiency > 99.5% Degree of Protection IP65 Topology Transformerless COMMUNICATION Standard Communication Mode/Operation Data Storage RS485,Wi-Fi & GPRS(Optional),SD Card/25 Years AMBIENCE PARAMETERS Operating Temperature -25 ͦC ~+60 ͦC/Acoustic Noise : <25 dB @1m Allowable Relative Humidity range : 0 to Max 95% non-condensing, Max.Operating Altitude:2000m DIMENSIONS(LxWxH)in mm 405x314x135 -
