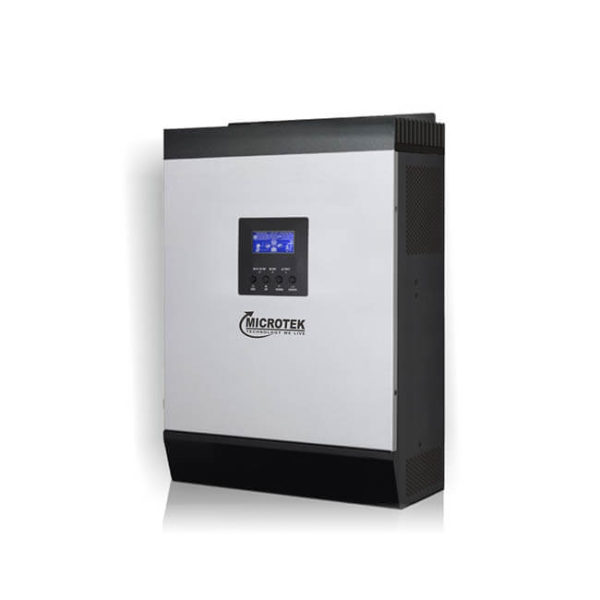

Microtek M-Sun Solar Bi-directional Hybrid System 3KVA/48V
Microtek M-SUN SOLAR BI-DIRECTIONAL HYBRID SYSTEM is a system with Grid-Tie functionality and Dual Power Inputs.
MPPT Based Technology Grid Tie Wall mounted Hybrid System that converts Solar Energy into Electricity.
It stores the Energy in Battery and provides the Electricity when Power is not available.
Excess Generation of Electricity from Solar Panel will be exported to Utility Grid if there is active Net Metering Policy in State.
-
Description
Product Description
Model M-SUN SOLAR BI-DIRECTIONAL HYBRID SYSTEM 3 KVA/48V Capacity (Rated Output Power) 3000 Watts Capacity (Maximum PV Array Power) 4000 Watts Key features
- Pure Sinewave Output
- Self-Consumption and Feed-in to the Grid.
- Programmable Supply Priority for PV, Battery or Grid.
- Programmable Multiple Operations Models: Off-Grid and Grid-Tie with Backup.
- Monitoring Software for Real-Time Status Display and Control.
- User-adjustable Battery Charging Current and Voltage.
- Parallel operation upto 6 Units only.
INPUT Acceptable Input Voltage Range 90~280V AC or 170 ~ 280V AC Nominal DC voltage 48 V DC OUTPUT Output Voltage Range 184 ~264.5 V AC Nominal Output Current 13 Amps Nominal Output Voltage 220 / 230 /240 V AC Output Waveform Pure Sine Wave CHANGEOVER Max. Conversion Efficiency (DC to AC) 90% Power Factor > 0.99 TECHNOLOGY Max. PV Array Open Circuit Voltage 145V DC MPPT Range @ Operating Voltage 60V ~ 115 V DC Frequency Range 50 / 60 Hz (Auto Sensing) Maximum Solar Charge Current 10 ~ 80 Amps (Adjustable) Maximum AC Charge Current 2 ~ 60 Amps (Adjustable) Maximum Charge Current 80A + 60A = 140 A Protections High Input voltage, Short Circuit, Phase Shorting to Output, Battery Deep Discharge, Solar Panel Short Circuit, INTERFACE Parallel Function Yes Communication USB or RS 232 / Dry Contact -
