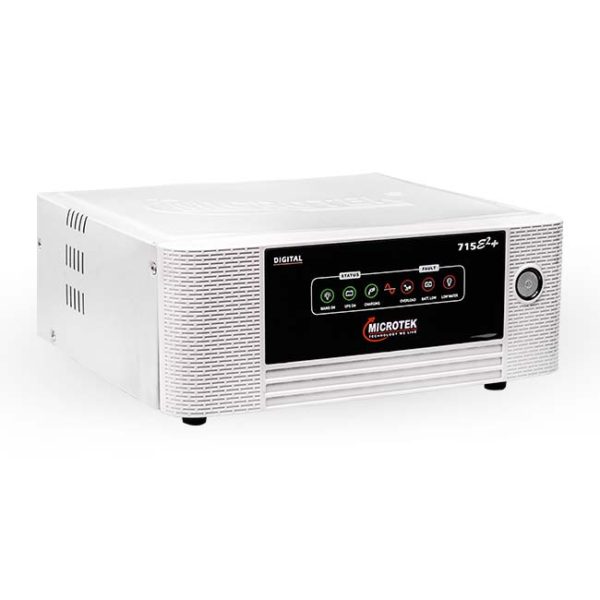

Microtek Digital UPS E²+715

Microtek UPS E²+ is Super Energy Efficient Series. It also comes with Additional Energy Saving Features like ZPS, DFLC and ITM which ensures Longer Life and High Reliability.

Weight – 9.225kg

Dimensions (L W H) – 382x339x192

Categories: ,
  • Description

    Product Description

    It is designed using latest state-of-the art Technology. It has Inbuilt Battery Water Level Indicator, which ensures timely Water Topping for Longer Life of the Battery. It is Specially Designed to give Longer Backups in Long Power cut/Rural Areas.

    It has Battery Selection Switch to get Equal Performance from all types of Batteries like Tubular/Flat Plate/ Local Battery.

    All Microtek UPS E²+ Series Models are based on IPS Technology and Saves Electricity so that every UPS E²+   becomes free in 3 Years.

    Rated Capacity 715 VA
    Output Power 572 Watts
    Battery 1 Battery System (12 VDC)
    Waveform TPZi Waveform (Trape Zoidal)
    Warranty 2 Years
    WEIGHT 9.225 kg
    WEIGHT 9.225kg
    DIMENSIONS (L W H)

    Key features

    • Micro Controller Based Intelligent Control Design.
    • LED Display Indications for UPS Status and Fault
    • CCCV Technology with Auto Trickle Mode
    • Smart Overload Sense and Short Circuit Protection
    • Battery State Monitoring
    • Multi Stage Battery Charger
    • Mains Input Voltage Range Slide Selection Switch
    • Battery Slide Selection Switch (Local/Flat/Tubular)

    Display

    • MAINS ON
    • UPS ON
    • BATTERY CHARGING
    • OVERLOAD
    • BATTERY LOW
    • FAULT INDICATION

    Additional Feature

    • In case when water level is low in battery, then Low Water Red LED Glows on the front panel of UPS.
    INPUT
    Input Voltage (Standard range) 100 V ~ 300 V
    Input Voltage (Narrow range) 180V ~ 260 V
    OUTPUT
    Output Voltage (Mains Mode) Same as Input
    Output Voltage (UPS Mode) 200V~ 230V ± 10%
    Output Waveform (Mains Mode) Same as Input
    Output Waveform (UPS Mode) TPZi Waveform (Trape Zoidal Waveform)
    CHANGEOVER
    Switchover from Mains to UPS and UPS to Mains Automatic
    UPS Transfer Time ≤ 15 msec.
    TECHNOLOGY
    Design Micro Controller Based Design
    Battery Charging Current 10% of the rated Battery Current in AH
    UPS Overload / UPS Short-circuit 110% / 300%
    Browns on Mains Voltage 100V ± 40V
    Efficiency (Battery Mode) > 87%
    Auto Reset Feature Yes
    Input DC Range 10.5 V  ~ 14.2 V
    Charging Current (Standard) 10 Amps ± 1 Amps
    Charging Current (High) 13 Amps ± 1 Amps
